| Dimension | 9850*2550*3950mm | |||
| Total weight | 25000 kg | |||
| Curb weight | 11500 kg | |||
| Loading capacity | 13500 kg | |||
| Wheelbase | 4350+1350 mm | |||
| Chassis brand | CLW | |||
| Tire speficication | 11.00R20 | |||
| Number of tires | 10 + 1 | |||
| Fuel type | Diesel | |||
| Engine model | WP8.350E62 | |||
| Engine displacement | 8900 cc | |||
| Engine power | 257 kw/ 350 hp | |||
| Engine rate speed | 2100 rpm | |||
| Engine max torque / speed | 1550 N.m at 1100-1400 rpm | |||
| Tank Capacity | 20m3 22m3 | |||
| Tank material | carbon steel 6 mm | |||
| Vertical suction | 6 m | |||
| Vacuum pump | 2BE204 water cyclic | |||
| 1. The tank has a volume of 20 cubic meters and is made of high quality steel plate. The wall thickness is 8mm. The middle of the tank is reasonably designed with a wave plate | ||||
| 2. Install Shandong Zibo Haosai 2BE204 water circulating pump | ||||
| 3. Install the overflow valve, and install stainless steel filter screen on the vacuum pipe (to prevent impurities from entering the pump) | ||||
| 4. A shock resistant pressure gauge with a diameter of 100 is installed at the four-way dirt suction valve, which can resist the vibration of the working environment and reduce the pulsation effect of the medium pressure | ||||
| 5. A 100 suction port, a 600 hydraulic drain port at the tail, and a 100 drain port | ||||
| 6. The tank body is equipped with lifting and self unloading function, and the drain outlet at the tail can be opened hydraulically with locking device | ||||
| Standard configuration | 7. The tank top is designed as a platform with protective railings and 2 tank openings installed to facilitate feeding from the top and cleaning the tank | |||
Septic Truck
CHENGLONG

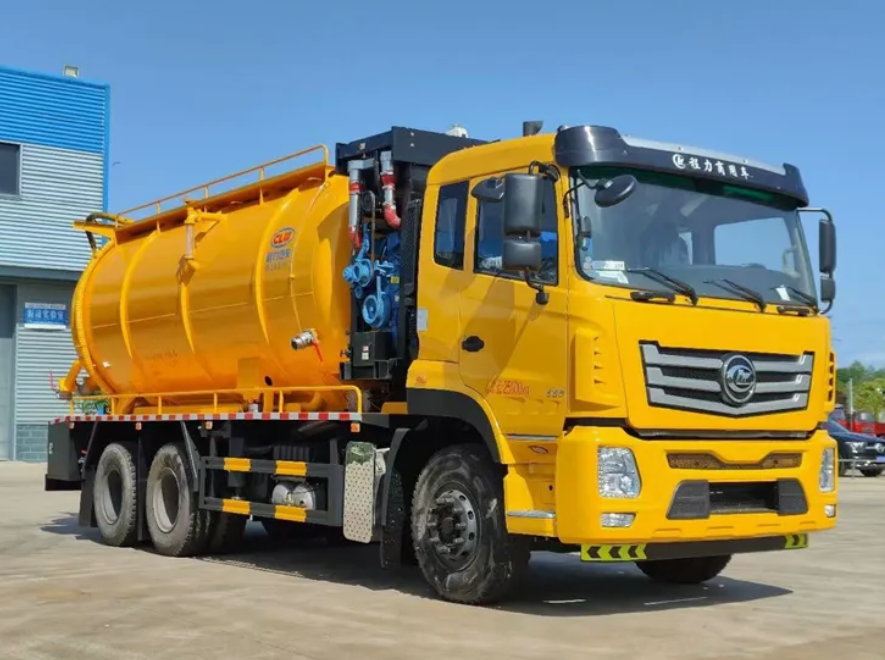

Chenglong Heavy Duty 6X4 Sewage Suction Truck 20000L High Pressure Vacuum Fecal Septic Tank Truck
Model: CL5681VAIL35LV
HARMAC supplies high-quality septic trucks for efficient sewage collection, transportation, and disposal. Featuring powerful vacuum pumps, corrosion-resistant tanks, and reliable chassis from ISUZU, FAW, Dongfeng, SINOTRUK, and more. OEM and customized solutions are available for global markets.
Brand
CHENGLONG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
