| Paramenter | Unit | XZ180 |
| engine | ||
| model | – | 6BT5.9-C130 |
| Rated Power | (kW/r/min) | 97/2200 |
| Push and Pull | ||
| Maximum push and pull force | (kN) | 180 |
| Maximum push and pull speed | (m/min) | 23 |
| Rotation | ||
| Torque | (N·m) | 6000 |
| Maximum speed | (r/min) | 150 |
| Mud pump | ||
| Maximum flow | (L/min) | 250 |
| Maximum pressure | (MPa) | 8 |
| Drill pipe | (mm×m) | φ60×3 |
| Truck mounted crane | ||
| Lifting weight | (t) | — |
| Lifting torque | (t•m) | — |
| Maximum penetration angle | (°) | 22 |
| Maximum expansion diameter | (mm) | φ600 |
| quality | (t) | 8.5 |
| Dimensions | (mm) | 6500×2270×2340 |
Drilling Equipment
XCMG

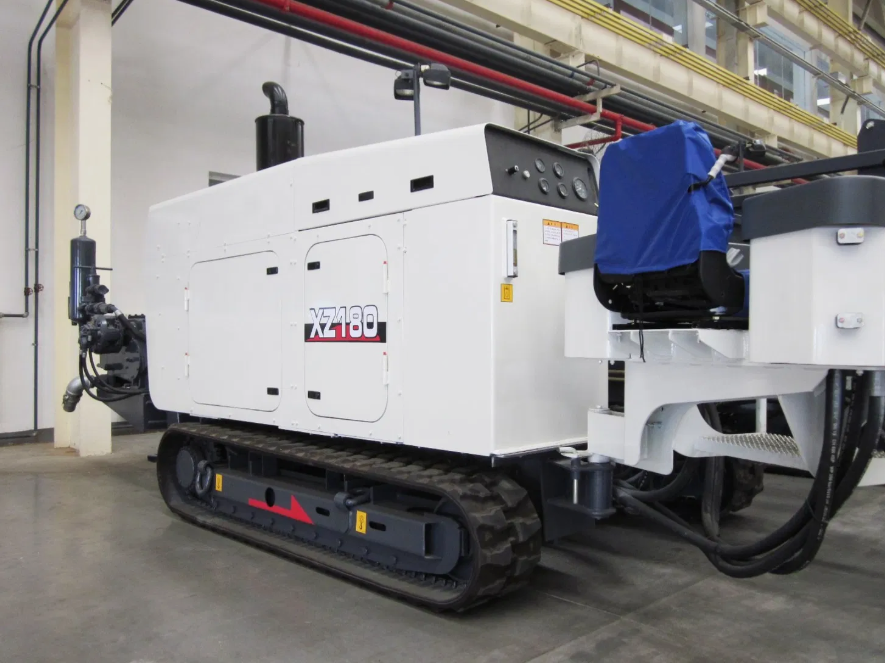

Horizontal Directional Drilling Machine XZ180
Model: XZ180
Horizontal Directional Drill (HDD) is a trenchless drilling machine used to install underground pipes and cables with minimal surface disruption, widely applied in utility and infrastructure construction.
Brand
XCMG
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
