Dimensions	Length/mm			9870
	Width/mm			2500
	Height/mm			3690
	Wheelbase/mm			4500
	Front/Rear Thread/mm			1835/1640
	Approach/Departure Angle/°			20/13
	Front/Rear Overhang/mm			1180/1715
Chassis	Brand			HOWO
	Driven Mode			4×4, LHD
	Front Axle Load/kg			7000
	Rear Axle Load/kg			11000
	Braking System			Air Break
	Tyre			12R22.5, 10 pcs and one spare
	Gear Box			10 forwards 2 backward
	Max Speed/ km/h			105
	Beam			140mm Cross Beam
Cab	3+3 passengers
Engine	Model				WeiChai
	Horsepower/HP				300
	Displacement/L				8.9
	Max Torque				650N·m
	Speed at Max Torque/rpm				1500
Fire Fighting System
Fire Pump	Model		CB10/40
	Flow/ L/s		40
	Pressure/MPa		1
	Water Suction Time/s		Less than 35(when height is 7m)
	Installation Mode		Rear-mounted
Fire Monitor	Model		PS40
	Pressure/MPa		1
	Flow/ L/s		40
	Range/m		More than 60
	Horizontal Rotating Angle/°		360
	Pitching Rotating Angle/°		-30~80
	Operation Mode		Manual
Pipeline Systems	Internal Inflow Pipe		One pc φ125mm pipe with one pc φ125mm flygate
	External Inflow Pipe		Installed behind the pump, φ125mm, with 4 pcs 2m water suction pipes
	Water Outlet Pipe		-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves
			-One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
	Water Injection Pipe		-One pc φ50mm internal water injection pipe
			-One pc φ65mm external water injection pipe
	Cooling Water Pipe		Equipped with stainless steel ball valve
	Drain Pipe		In the lowest position of the pipe
Water Tank	Loading Capacity/kg		12000
	Material		Quality Carbon Steel Plate
	Thickness		Baseboard and Endplate: 4mm
			Side plate and top plate: 3mm
	Structure		Welded Type, Anti-swing Plate Inside
			-One Manhole, with fast lock & unlock device
			-One Overflow Device
			-One Level Indication Device
			-One Drain Hole, controlled by manual valve
Electrical System	-Above the driving room are lightbar & 12V/60W fire scene light
	-Above both sides of the vehicle are two flash lights
	-100W alarm light
	-Switches of all the lights, alarms and pumps on the control panel.
Foam Tank	Structure	Connected
	Capacity/kg	2000
	Material	Quality
	Base: Side Plate: Anti-swing Plate	4:04:03
		-One Manhole, with fast lock & unlock and
	Other Detail	pressure-release device
		-One Overflow Device: DN50mm
		-One Drain Hole with ball valve: DN40
Powder Cylinder	Power System	Including Pressed Nitrogen and Burned Gas
	Capacity/kg	2000

Fire Truck HOWO

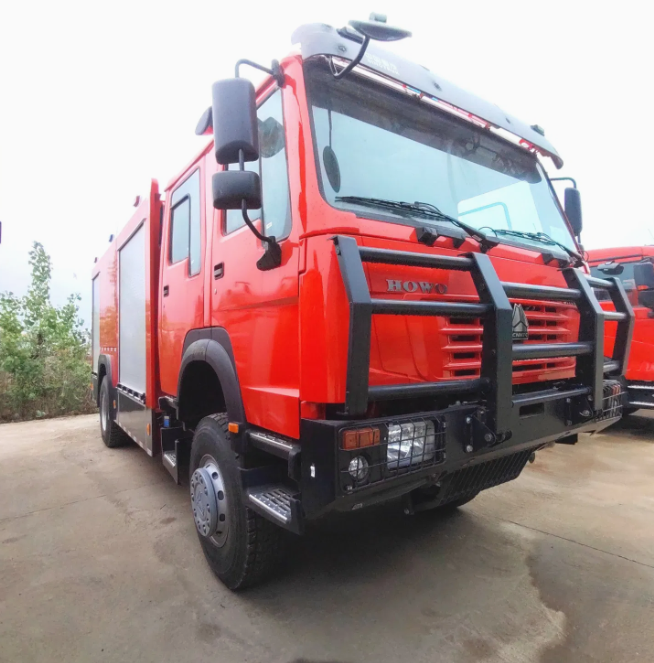

HOWO 4X4 Fire Truck

Model: CB10/40

Reliable Fire Fighting Vehicles for Municipal, Industrial, Airport, and Emergency Rescue Applications. Available in Water Tank, Foam, Rescue, and Custom Configurations.

Brand

HOWO

Warranty

3 Years

ISO CE Certified

Worldwide Shipping

Strict QC

Share this product
