| General Technical Specification | |||||
| Overall Dimension | 7280*2350*2400(mm) | ||||
| Gross Vehicle Weight | 7300 (Kg) | ||||
| Curb Weight | 4280 (Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | 600P | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 96KW/130HP | ||||
| Emission standard | EURO 4 | ||||
| Displacement | 2999(ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Oil Brake | ||||
| Wheel Base | 3815(mm) | ||||
| Front/Rear Axle Loading | 3000/4800(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 7.50R16, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 98(km/h) | ||||
| Superstructure Specification | |||||
| Platform Organ | Dimension | 5600*2350(mm) | |||
| Rear manual flip board length | 1200(mm) | ||||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 4000(kg) | ||||
| Winch | Quantity | 1 | |||
| Winch rating towing capacity | 4000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
Road Wrecker
ISUZU

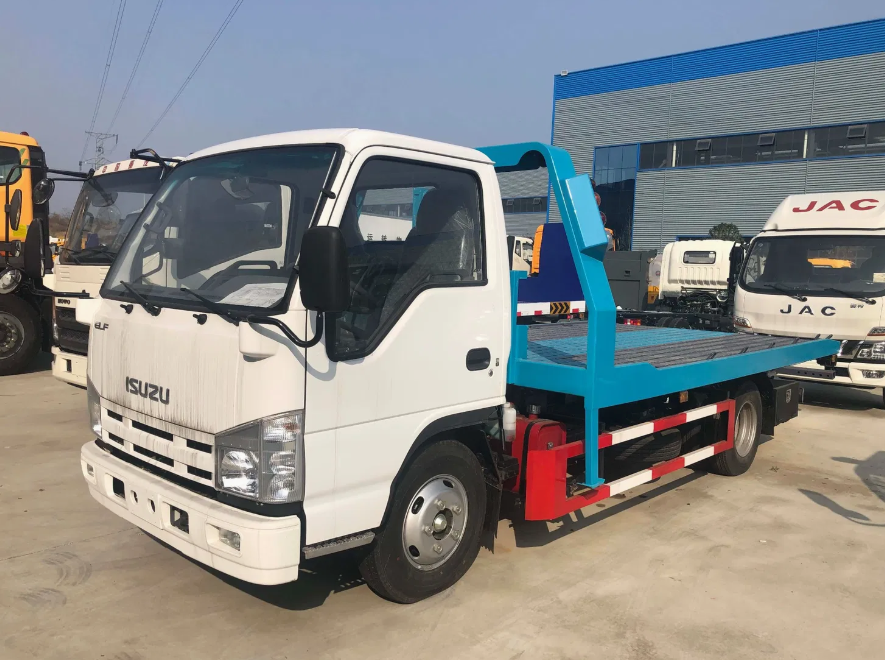

4 Tons Road Wrecker Road Platform Towing Medium Wrecker Truck
Model: ISUZU5070TQZQ3
Our road wreckers are designed for efficient vehicle recovery, towing, and roadside rescue. Built on reliable truck chassis with advanced lifting and towing systems, they are ideal for highways, urban roads, emergency services, and fleet operators.
Brand
ISUZU
Warranty
3 Years
ISO CE Certified
Worldwide Shipping
Strict QC
Request a Quote
Get pricing & availability within 24h
